Quanwei Machinery (Jiangsu) Co., Ltd. has been deeply engaged in the field of air compressor machinery and equipment, focusing on the exclusive needs of the laser cutting industry. The QWL-30ZCY dual-tank screw air compressor specially designed for laser cutting, developed by the company, has been stably put on the market. With its precise adaptability and reliable performance, it has become the preferred supporting equipment for laser cutting operations, providing strong support for the high-quality development of the laser cutting industry.
As a new type of cutting technology, laser cutting can achieve higher precision cutting results by virtue of the advantage of beam cutting, and is widely used in various processing and manufacturing fields. During the operation of the laser cutting machine, the gas compressed by the air compressor is usually used as the auxiliary gas. The stability and cleanliness of the auxiliary gas directly affect the cutting precision and efficiency. The QWL-30ZCY model is specially designed for this core demand, perfectly adapting to all scenarios of laser cutting operations.

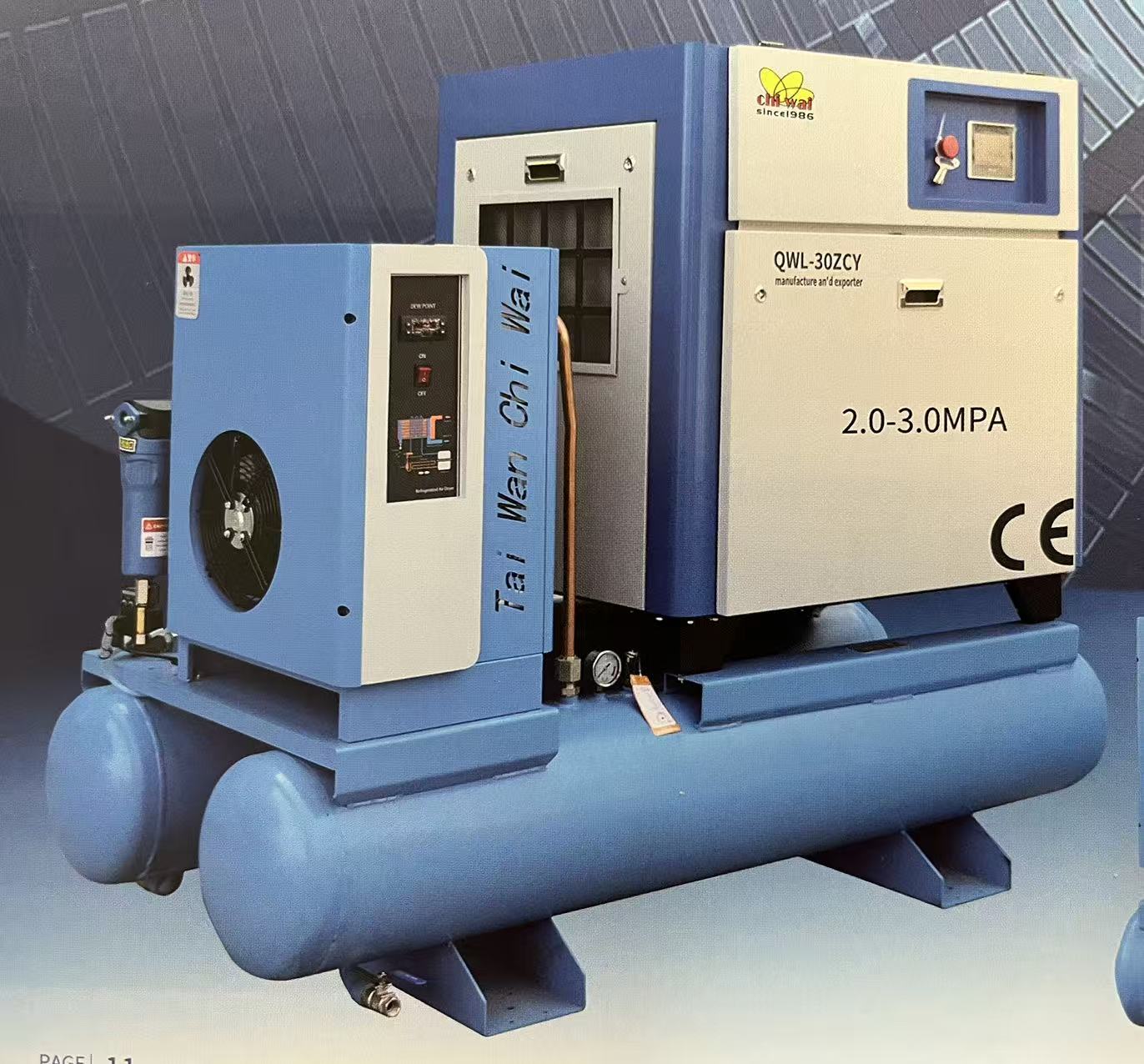

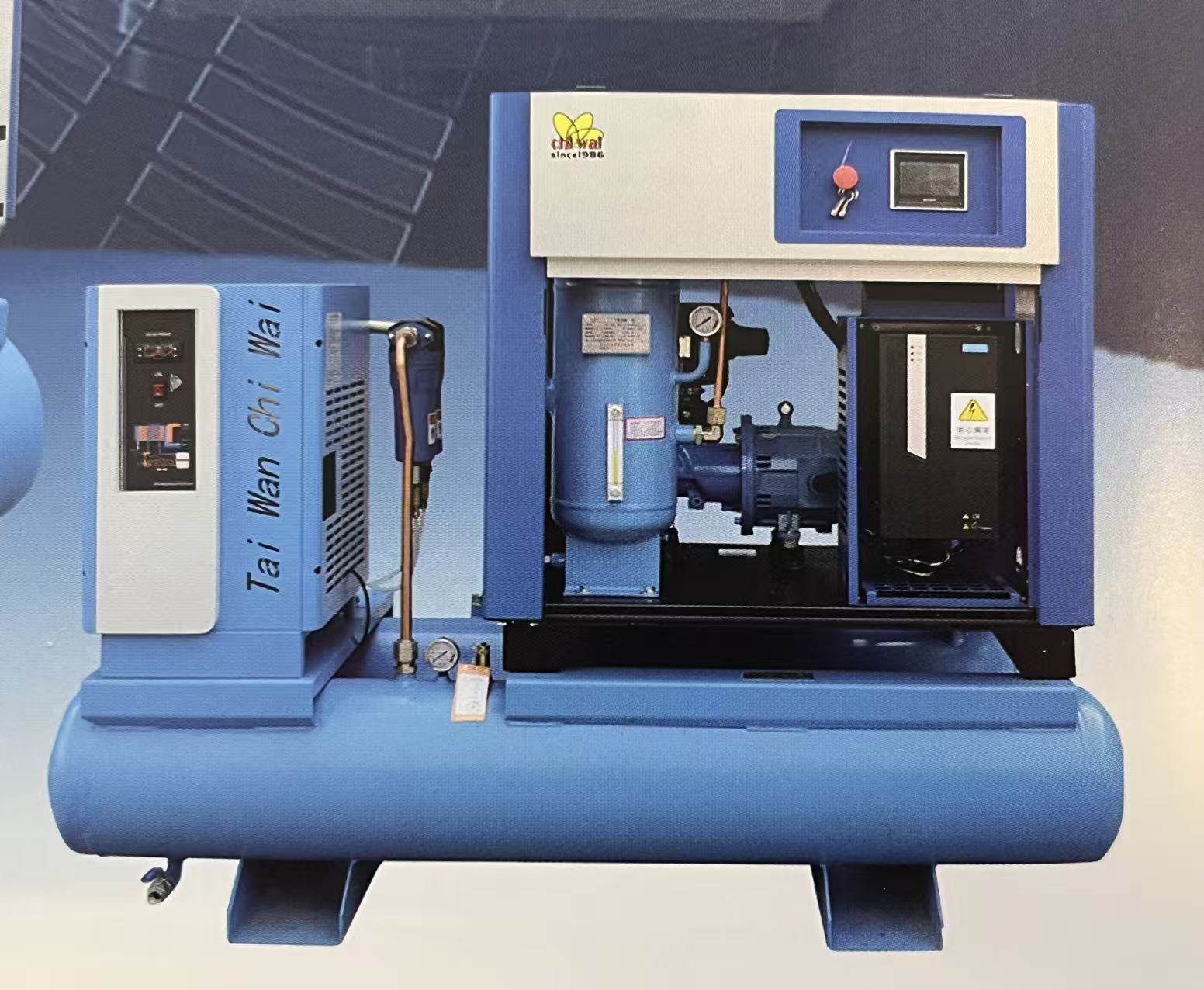

As a special air compressor for laser cutting, the QWL-30ZCY model has a rated power of 22kw (30hp) and adopts a permanent magnet variable frequency start-up method. It starts stably and consumes less energy. It can intelligently adjust the operating state according to the actual air demand of laser cutting, which not only ensures the stable supply of auxiliary gas, but also effectively reduces the operating cost of enterprises, conforming to the industry's demand for energy conservation and consumption reduction.
The core parameters of this model are adapted to the exclusive working conditions of laser cutting, as follows: when the exhaust pressure is 1.2MPA, the exhaust volume is 2.7m³/min; when the exhaust pressure is 1.6MPA, the exhaust volume is 1.8m³/min, which can accurately match the air demand of laser cutting machines with different powers. The overall dimensions of the unit are 1850mm×850mm×1430mm, with a compact structure and small floor space, suitable for various installation scenarios in the workshop; the power supply adopts a standard configuration of 380V/50Hz, with strong versatility; the operating noise is controlled at 68±2dB(A), effectively reducing interference to the operating environment.
In terms of detailed design, the QWL-30ZCY also balances practicality and convenience. The outlet size is G3/4, which is compatible with the conventional interface of laser cutting machines, enabling convenient connection; the overall weight is 480kg, which is easy to carry and install; the lubricating oil capacity is 18L, which is easy to maintain, effectively reducing equipment maintenance costs and ensuring long-term stable operation of the equipment.
It is worth noting that this model can flexibly adjust relevant parameters according to different working conditions in the industry, further improving adaptability and meeting the personalized air demand of different enterprises. Since it was put on the market, the QWL-30ZCY has been recognized by many laser cutting enterprises by virtue of its stable performance and precise parameter adaptation.
Quanwei Machinery has always been guided by industry needs, focusing on the R&D and optimization of air compressor products. As an important member of the company's special air compressor product matrix, the QWL-30ZCY dual-tank screw air compressor for laser cutting continuously provides efficient and reliable auxiliary gas solutions for the laser cutting industry, helping enterprises improve cutting precision and operation efficiency, and promoting the high-quality development of the industry.
